Kit 2
Pony Truck
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back

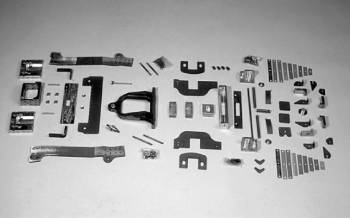

              Pony Truck - Unassembled Kit


REAR BEAM PLATE (1)
REAR BEAM PADS (2)
PONY STRETCHER (1)
KING PIN (1)
PRESSURE BRACKET (2)
PRESSURE PAD (2)
DRAG FRAME (2)
CYL/BRAKE CRANKS (2)
CRANKSHAFT (1)
OPERATING ROD (1)
ROD FORKS (4)
FORK PIN (4)
BOILER BRACKETS (2)
COUPLING BLOCKS (1)
Parts Listing
PONY TRUCK FRAME (2)
PONY FRAME (1)
PIVOT BUSH (1)
CENTRING BAR BUSH (2)
HORNS (4)
AXLEBOX GUARD (2)
REAR HORN PLATE (2)
OUTER HORN PLATE (2)
HORN STAY (2)
PRESSURE PAD (2)
REAR STRETCHER (1)
REAR STRETCHER BEARING
PLATE (1)
SPRING PIN (4)
SPRING SOCKET (4)
SPRING GUARD (2)
RETURN SPRING POST (1)
RETURN SPRING BAR (1)
RETURN SPRING PLATE (1)
RETURN SPRING (2)
ANCHOR BLOCKS (4)
ANCHOR PLATES (F) (2)
ANCHOR PLATES (R) (2)
ANCHOR PLATE W/LUG (F) (2)
ANCHOR PLATE W/LUG (R) (2)
LEAF SPRING SET (2)
REAR BUFFER BEAM (1)

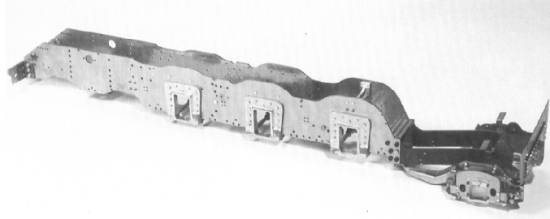

KIT1-2 - Assembly Complete
