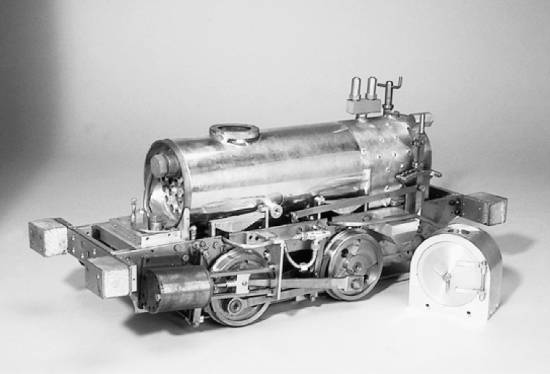

Cladding & Draughting - Unassembled Kit
|
Parts Listing
FIRE BAR (7)
GRATE LEGS (4)
GRATE SPACER - LONG (8)
GRATE SPACER - SHORT (4)
GRATE CROSS BAR (2)
ASHPAN (1)
ASHPAN FIXING ROD (1)
BARREL CLADDING (1)
BARREL LAGGING (1)
REGULATOR VALVE ELBOW (1)
MAIN STEAM PIPE (1)
LIVE STEAM PIPE ASSEMBLY (1)
BANJO (1)
BANJO BOLT (1)
BANJO (1)
BANJO BOLT (2)
BLAST PIPE (1)
FIREBOX DOOR (1)
FIREBOX DOOR HINGE (1)
FIREBOX DOOR HINGE BLOCK (1)
LATCH BLOCK (1)
FIREBOX DOOR HANDLE (1)
HINGE PIN (1)
SAFETY VALVE MANIFOLD ASSY. (1)
SAFETY VALVE MANIFOLD (1)
SAFETY VALVE STAND (1)
PLUG (1)
SAFETY VALVE BODY (2)
SAFETY VALVE SPINDLE (2)
SAFETY VALVE CAP (2)
S.S.BALL 5mm (2)
SAFETY VALVE SPRING (2)
|
