Kit 6
SMOKEBOX
KIT   1  2  3  4  5  6  7  8  9  10  11  12  Forward / Back
Parts Listing


SMOKEBOX DOOR (1)
SMOKEBOX DOOR HINGE (2)
SMOKEBOX HINGE BLOCK (2)
SMOKEBOX DOOR HINGE PIN (1)
SMOKEBOX DART (1)
CROSS/DART BAR (1)
CROSS/DART BAR BRACKET (2)
SMOKEBOX (1)
SMOKEBOX FRONT (1)
SMOKEBOX REAR (1)
SMOKEBOX SADDLE (1)
SAND BOX (2)
SAND BOX LIDS (2)
TANK TO PUMP PIPE (1)
PUMP TO BOILER PIPE (1)

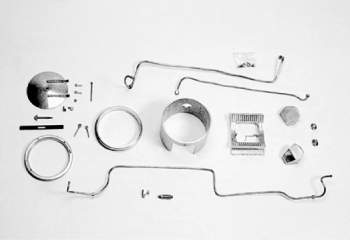

Smokebox - Unassembled Kit
SMOKEBOX DOOR HANDLE OUTER (1)
SMOKEBOX DOOR HANDLE INNER (1) LUBRICATOR TO STEAM CHEST PIPE (1) LUBRICATOR FITTING CONNECTOR (1)

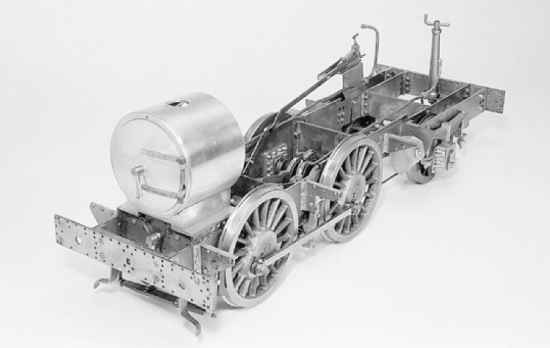

Kits 1-6 - Assembly Complete
