Kit 8
       CLADDING & DRAUGHTING
KIT   1  2  3  4  5  6  7  8  9  10  11  12  Forward / Back
Parts Listing

BARREL CLADDING (1)
FIREBOX CLADDING (1)
FIREBOX FRONT CLADDING (1)
BALSA LAGGING (1 SET OF 8)
BOILER BANDS (2)
CLADDING BRACKETS (2)
ASHPAN (1)
ASHPAN GRATE BARS (7)
ASHPAN SPACERS (12)
ASHPAN LEGS (4)
ASHPAN STUDS (2)
ASHPAN DROP BAR (1)
INLET PIPE (1)
SAFETY VALVE (1)

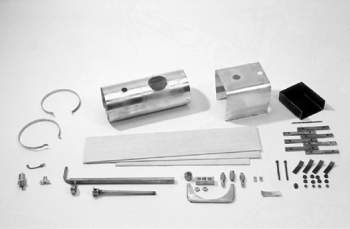

Cladding & Draughting - Unassembled Kit
EXHAUST/BLAST PIPE ASSEMBLY (1)
SUPER HEATER (1)

Kits 1-8 - Assembly Complete
