Kit 9
 BACKHEAD FITTINGS
KIT   1  2  3  4  5  6  7  8  9  10  11  12  Forward / Back

Parts Listing


DRAW HOOK (2)
DRAW HOOK SHAFT (2)
DRAW HOOK WASHER (2)
DRAW HOOK SPRING (2)
BUFFER SOCKET (4)
BUFFER SHAFT (4)
BUFFER (4)
BUFFER SPRING (4)
BUFFER BACK (4)
BACKHEAD CLADDING (1)
GLOBE VALVE (2)
MANIFOLD (1)
CHECK VALVE (3)
WATER GAUGE VALVE (1)
ELBOW (2)
BLANKING PLUG (1)
WHISTLE VALVE (1)
WHISTLE (LIVE) (1)
WHISTLE BRACKET (1)
Backhead Fittings - Unassembled Kit

FIREBOX DOOR LEVERS (1 SET)
FIREBOX DOOR (2)
FIREBOX DOOR RAIL (1 SET)
FIREBOX DOOR KNOB (2)
REGULATOR ROD (1)
REGULATOR BUSH SMALL (1)
REGULATOR BUSH LARGE (1)
REGULATOR HANDLE (1)

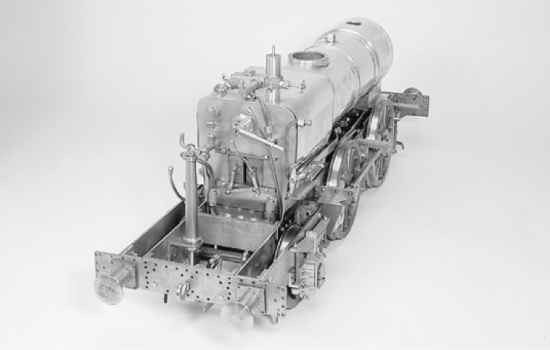

Kits 1-9 - Assembly Complete
