FRAMES
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back

Frames - Unassembled Kit
Parts Listing


MAIN FRAME (2)
UPPER FRONT FRAME (2)
LOWER FRONT FRAME (2)
REAR FRAME (2)
HORN STAYS (4)
REAR BUFFER BEAM ANGLES (4)
FRONT BUFFER BEAM ANGLES (4)
FRONT BUFFER BEAM (1)
REAR BUFFER BEAM (1)
FRONT PONY BOLSTER (1)
REAR PONY BOLSTER (1)
SMOKEBOX SADDLE (1)
MOTION PLATE (1)
MOTION PLATE BRACKET (2)
FRONT FOOT PLATE (1)

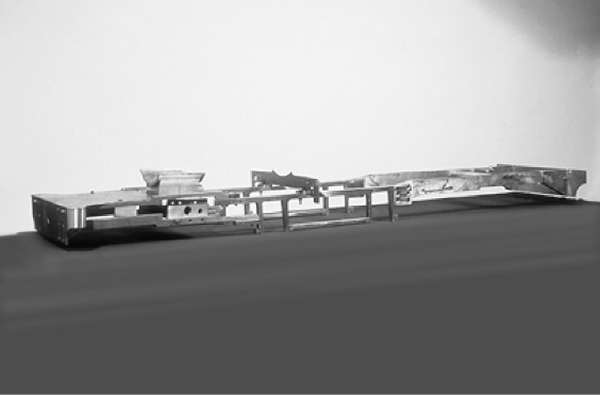

KIT1 - Assembly Complete
