DRIVING AXLE BOXES
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back

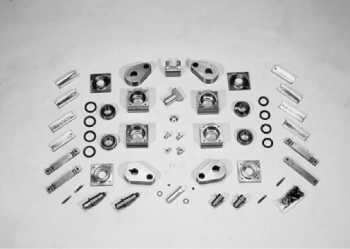

Driving Axle Boxes - Unassembled Kit


Parts Listing

WEDGE HORN (4)
STRAIGHT HORN (4)
WEDGE BOLT (4)
MAIN AXLE BOX (4)
MAIN AXLE BOX COVER (4)
MAIN AXLE BEARING (4)
MAIN AXLE INNER SEAL (4)
MAIN AXLE OUTER SEAL (4)
FLY CRANK (4)
DRIVING CRANK PIN (2)
DRIVING CRANK PIN WASHER (2)
LEADING CRANK PIN (2)
LEADING CRANK PIN CAP (2)
CRANK KEY (4)
AXLE PUMP MOUNTING PLATE (1)
AXLE PUMP MOUNTING BLOCK (1)
AXLE PUMP ECCENTRIC LINK (1)
AXLE PUMP (1)

Kits 1-3 - Assembly Complete
