BOILER FITTINGS
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back

Boiler Fittings - Unassembled Kit
REGULATOR ACTUATOR LIFT ARM (2)
REGULATOR ACTUATOR ROD BAR (1)
REGULATOR ACTUATOR SPACER (2)
REGULATOR ACTUATOR LONG PIN (2)
REGULATOR ACTUATOR SHORT PIN (2)
REGULATOR HANDLE (1)
REGULATOR HANDLE KNOB (1)
BANJO SEALING WASHER (2)
STEAM PIPE FLANGE (1)
STEAM PIPE BANJO (1)
STEAM PIPE (1)
REGULATOR STUFFING BOX (1)
Parts Listing


REGULATOR ROD (1)
REGULATOR STAND PIPE (1)
STEAM PIPE REGULATOR ELBOW (1)
REGULATOR VALVE (1)
REGULATOR ACTUATOR (1)
STEAM PIPE (1)
STEAM PIPE BANJO FITTING (1)
STEAM PIPE BANJO NUT (1)
TURRET (1)
TURRET SCREW (1)
TURRET TOP NIPPLE (1)
TURRET O RING (1)
TURRET TOP NUT (1)
TURRET VALVE HANDLE (1)
TURRET STANDPIPE (1)
FIREHOLE DOOR RING (1)
FIREHOLE DOOR (1)
FIREHOLE DOOR HINGE (2)
FIREHOLE DOOR HINGE BOLT (2)
FIREHOLE DOOR HINGE PIN (1)
FIREHOLE DOOR CATCH (1)
FIREHOLE DOOR LATCH (1)
REGULATOR GLAND (1)

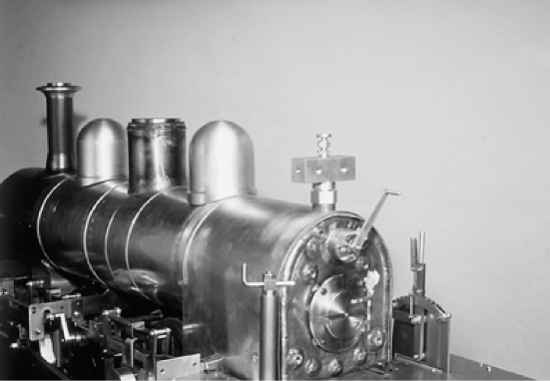

Kits 1-15 - Assembly Complete
