                    ASHPAN & REVERSER
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back
Parts Listing

ASHPAN (1)
DAMPER HINGE BLOCK (2)
DAMPER HINGE STRAP (2)
DAMPER HINGE PIN (1)
DAMPER (1)
GRATE LEG (4)
GRATE LEG (15)
GRATE SPACER (24)
GRATE FIXING BAR (2)
REVERSER STAND (1)
QUADRANT (2)
REVERSER POLE (1)
REVERSER POLE HANDLE (1)
REVERSER LEVER (1)
REVERSER DOG (1)
DOG KEEPER (1)
REVERSER LEVER PIN
REVERSER SPRING
REACH ROD (1)
QUADRANT SPACER (4)

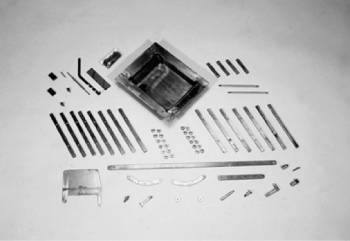

Ashpan & Reverser - Unassembled Kit


POLE PIVOT PIN (1)
REACH ROD END PIECE (1)
REACH ROD PIN (1)
REACH ROD REAR PIN
DAMPER OPERATING ROD
DAMPER OPERATING PIN

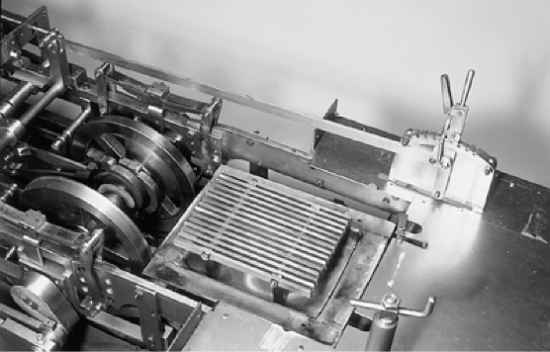

Kits 1-12 - Assembly Complete
