PIPEWORK
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back
Parts Listing


TURRET TO SMOKEBOX PIPE (1)
TURRET TO INJECTOR PIPE (2)
INJECTOR TO CLACK PIPE (2)
TANK TO INJECTOR VALVE PIPE (2)
HAND PUMP TO TANK PIPE (1)
MANIFOLD (1)
INJECTOR VALVE BRACKET (2)
BYPASS VALVE BRACKET (1)
7/16” 26 LOCK NUT (6)
BLOWER ELBOW (1)
SAFETY VALVE (2)
WHISTLE (1)
7/16” 26 NIPPLE (1)
5/16” 32 NIPPLE (7)
BLOW DOWN VALVE (1)
BOILER CHECK VALVE (4)
ANGLE VALVE (6)
3 WAY COCK (1)
INJECTOR (2)
TANK TO AXLE PUMP PIPE (1)
AXLE PUMP TO BYPASS PIPE (1)
BYPASS TO TANK PIPE (1)
AXLE PUMP TO CLACK PIPE (1)

Pipework - Unassembled Kit

INJECTOR VALVE TO INJECTOR PIPE (2)
SMOKEBOX TO BLOWER RING PIPE (1)
TANK TO CLACK PIPE (1)
3 WAY COCK TO EXHAUST (1)
3 WAY COCK TO MANIFOLD (1)
MANIFOLD TO LH FRONT DRAIN (1)
MANIFOLD TO LH REAR DRAIN (1)
MANIFOLD TO RH FRONT DRAIN (1)
MANIFOLD TO RH REAR DRAIN (1)
WATER GAUGE TO EXHAUST PIPE (2)

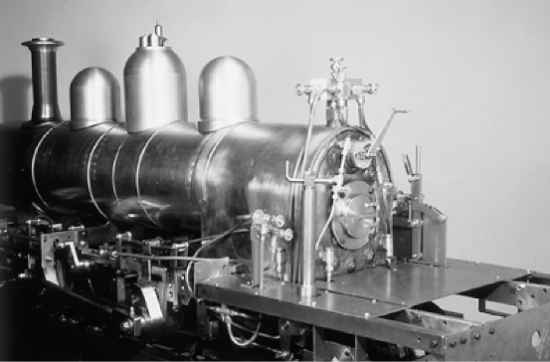

Kits 1-16 - Assembly Complete
