MOTION
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back

Parts Listing

DIE BLOCK (2)
INNER ROCKER ARM (2)
OUTER ROCKER ARM (2)
ROCKER SHAFT (2)
ROCKER SHAFT BEARING (2)
LIFT LINK (2)
LIFT ARM (1)
WEIGHT SHAFT (1)
WEIGHT SHAFT BEARING (2)
REVERSER ARM (1)
LIFT LINK BUSH (4)
WEIGHTSHAFT BUSH (2)
ROCKER BUSH (4)
EXPANSION LINK BUSH (4)
ROCKER ARM PIN (4)
LIFT ARM PIN (1)
ECCENTRIC ROD PIN (4)
REACH ROD PIN (1)
EXPANSION LINK (2)
LINK CARRIER (2)
COUPLING ROD (2)
VALVE ROD FRONT BUSH (2)
VALVE ROD REAR BUSH (2)
ECCENTRIC ROD PIN (4)
DIE BLOCK WASHER (2)
VALVE CLEVIS PIN (2)

Motion - Unassembled Kit


COUPLING ROD REAR BUSH (2)
COUPLING ROD FRONT BUSH (2)
CON ROD (2)
BIG END BUSH (2)
LITTLE END BUSH (2)
CROSS HEAD (2)
LITTLE END PIN (2)
CROSS HEAD SLIPPER (2)
BOTTOM SLIDE BAR (2)
TOP SLIDE BAR (2)
FRONT SLIDE BAR BRACKET (2)
REAR SLIDE BAR BRACKET (2)
VALVE ROD (2)

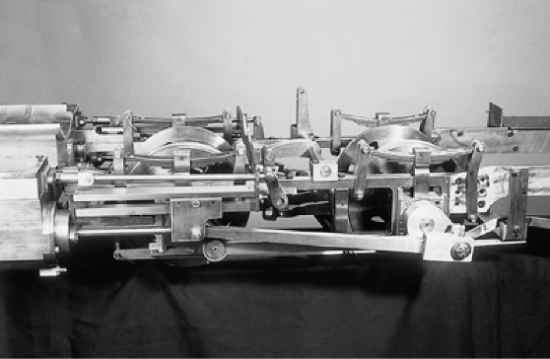

Kits 1-9 - Assembly Complete
