TANKS
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back

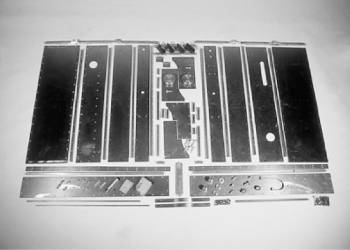

Tanks - Unassembled Kit


OUTER VERTICAL TANK BRACKET (4)
BOTTOM INNER TANK BRACKET (4)
FRONT TANK BRACKET (2)
REAR TANK BRACKET (2)
TANK TOP HAND RAIL (2)
TANK STRAPS (2)
TANKTOP HANDRAIL STANCHION (6)
Parts Listing

TANK SIDE (2)
TANK FRONT (2)
TANK REAR (2)
TANK BASE (2)
TANK TOP (2)
TANK INNER LOWER (2)
TANK INNER UPPER (2)
TANK WAIST (2)
TANK MAIN BRACKET (10)
TANK INSIDE ANGLE (2)
END BOTTOM TANK BRACKET (4)
TOP INNER TANK END BRACKET (4)
TOP TANK END BRACKET (4)
TANK LID KNOB (2)
TANK STEP (2)
BALANCE PIPE FITTING (2)
BACK NUT (5)
OUTLET FITTING (2)
BULKHEAD FITTING (1)
HAND PUMP (1)
BALANCE PIPE (1)
TANK LID (2)

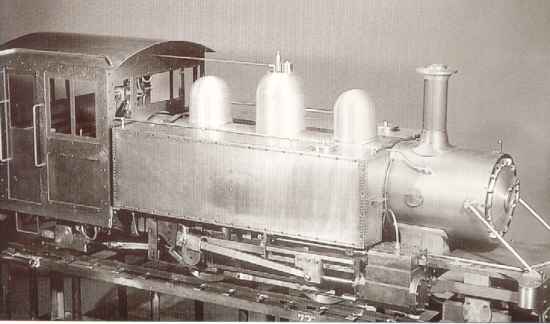

Kits 1-17 - Assembly Complete
