SMOKEBOX
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back
Parts Listing


CHIMNEY BARREL (1)
CHIMNEY CAP (1)
SMOKEBOX (1)
CHIMNEY BASE (1)
SMOKEBOX FRONT (1)
SMOKEBOX CENTRE BOSS (1)
SMOKEBOX HINGE STRAP (2)
SMOKEBOX DOOR DOG (16)
SMOKEBOX DOOR (1)
SMOKEBOX HINGE (2)
SMOKEBOX HINGE PIN (2)
STEAM PIPE FLANGE (1)
STEAM PIPE BANJO (1)
VERTICAL STEAM PIPE (1)
BLAST NOZZLE (1)
BLAST PIPE (1)
BLOWER NOZZLE (1)
BLOWER NOZZLE FITTING (1)

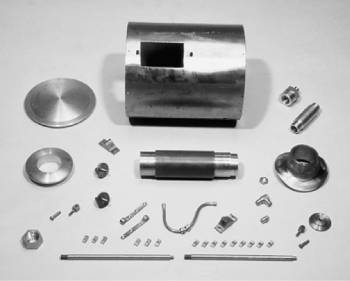

Smokebox - Unassembled Kit

SMOKEBOX STAY FRAME BRACKET (2)
SMOKEBOX STAY SMOKEBOX BOSS (2)
SMOKEBOX STAY (2)
STEAM PIPE GASKET (1)

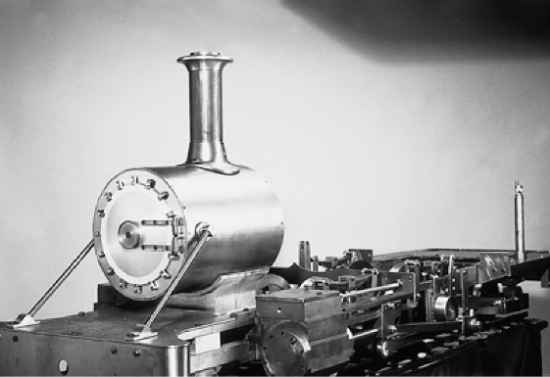

Kits 1-10 - Assembly Complete
