       CYLINDERS
KIT   1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16  17  18  Forward / Back
Parts Listing

CYLINDER BLOCK (2)
FRONT CYLINDER COVER (2)
REAR CYLINDER COVER (2)
CYLINDER COVER GASKET (4)
VALVE CHEST LID (2)
VALVE CHEST (2)
VALVE CHEST GASKET (4)
SLIDE VALVE (2)
VALVE BUCKLE (2)
VALVE BUCKLE ROD (2)
VALVE ADJUSTER NUT (2)
VALVE CLEVIS (2)
PISTON INNER HALF (2)
PISTON RING (4)
PISTON ROD NECK RING (2)
PISTON ROD GLAND (2)
PISTON SPACER (2)
PISTON OUTER HALF (2)
DRAIN COCK BODY (4)
DRAIN COCK BULKHEAD FITTING (4)
DRAIN COCK SHUTTLE (4)
VALVE ROD NECK RING (2)
VALVE ROD GLAND (2)
PISTON ROD (2)
SMOKEBOX SADDLE GASKET (2)

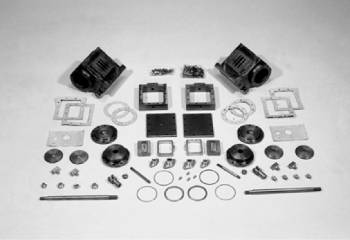

Cylinders - Unassembled Kit

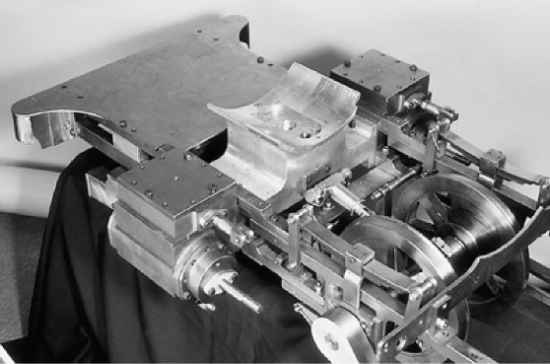

Kits 1-8 - Assembly Complete
